Understanding Wear Layer Thickness: 12mil vs 20mil vs 28mil
Every luxury vinyl plank box carries two numbers that look almost identical but mean completely different things: the plank thickness in millimeters and the wear layer thickness in mils. Shoppers routinely buy a "12mm" floor believing they purchased a 12 mil wear layer, then watch the print layer fade through in three years. The wear layer is the only part of the plank standing between daily traffic and the photograph that makes your floor look like real oak.
This guide explains exactly what a wear layer is, how 6, 12, 20, 28 and 40 mil specs differ, which rating fits each room and household, and how coatings and testing standards separate a genuine commercial-grade plank from a marketing label. Hanflor has manufactured PVC flooring for more than 20 years, and this is the specification we spend the most time explaining to buyers.
What Is a Wear Layer on Vinyl Flooring?
The wear layer is the clear, transparent top film bonded above the printed design film of a vinyl plank or tile. It is usually a urethane-coated PVC film, and on better products it carries a surface treatment such as aluminum oxide or suspended ceramic micro-beads. Its job is straightforward: absorb abrasion so the decorative print below stays intact.
Foot traffic, tracked-in grit, dragged furniture, pet claws and dropped pans all attack the top surface first. As long as the wear layer holds, those impacts produce micro-scratches in a clear film that the eye barely registers. Once abrasion cuts through the film, the printed design layer is exposed and the damage becomes permanent. Vinyl cannot be sanded and recoated the way solid hardwood can, so there is no repair stage — only plank replacement.
The core point: wear layer thickness decides how long the floor keeps looking new. Total plank thickness decides how solid and quiet it feels underfoot. They are unrelated specifications, and durability lives in the wear layer.
Wear Layer vs Total Thickness: The Spec Most Buyers Confuse
Two measurements appear on every vinyl product listing, and mixing them up is the most expensive mistake in the category.
- Total plank thickness (millimeters) — the full height of the board, from backing to the top of the surface. Quality luxury vinyl runs roughly 4mm to 12mm. This number drives rigidity, sound absorption, comfort underfoot and how well the plank bridges minor subfloor imperfections.
- Wear layer thickness (mils) — the clear protective top film only. This number drives scratch resistance, stain resistance and expected service life.
The two move independently. An 8mm plank can carry a budget 6 mil wear layer and feel substantial while being fragile on the surface. A 5mm plank with a 20 mil wear layer can look shop-worn-proof for decades. When a listing advertises a "thick" floor, confirm both figures in writing before ordering.
How Wear Layer Is Measured: Mils, Millimeters and Microns
A mil is one thousandth of an inch (0.001 inch), a unit used almost exclusively for coating and film thickness. It is not a millimeter, and the two numbers on a plank box are often within a digit of each other by coincidence — which is exactly why the confusion is so common.
| Unit | Value | Typical Use in Flooring |
|---|---|---|
| 1 mil | 0.001 inch / 0.0254 mm | Wear layer thickness |
| 12 mil | 0.012 inch / 0.30 mm | Standard residential wear layer |
| 20 mil | 0.020 inch / 0.51 mm | Heavy residential, light commercial |
| 28 mil | 0.028 inch / 0.71 mm | Commercial-grade wear layer |
| 1 mm | 39.4 mils | Overall plank thickness only |
When a manufacturer quotes wear layer in millimeters instead of mils, multiply by roughly 39 to compare: a 0.5mm wear layer equals approximately 20 mil. European commercial specifications frequently use EN 649 or ISO 10582 classifications instead of a mil figure, which measure residual thickness after simulated foot traffic rather than the film thickness at the factory.
Wear Layer Thickness Chart: 6 Mil to 40 Mil Compared
The table below summarizes how each wear layer tier is used, what lifespan it realistically supports, and which price band it typically falls into in the US market.
| Wear Layer | Recommended Use | Realistic Lifespan | Typical Price |
|---|---|---|---|
| 6–8 mil | Light residential: guest rooms, closets, seasonal spaces | 5–10 years | $1.00–$2.00 / sq ft |
| 12 mil | Standard residential: bedrooms, low-traffic living areas | 10–15 years | $1.50–$2.50 / sq ft |
| 20 mil | Heavy residential and light commercial: kitchens, hallways, pet households | 15–25 years | $2.50–$4.00 / sq ft |
| 22–28 mil | Premium residential and standard commercial: rentals, retail, offices | 20–30 years | $4.00–$6.00 / sq ft |
| 40 mil+ | Heavy commercial and institutional: retail, healthcare, hospitality | 30+ years | $6.00+ / sq ft |
Two caveats worth stating plainly. First, these lifespan ranges assume normal maintenance and a doormat at every entrance; grit is the single largest accelerator of wear, and a floor with no mat protection can age twice as fast. Second, no government or trade body publishes a table converting mils into years of service. ASTM F410 defines the wear layer as an optical thickness measurement between 0.0004 and 0.1 inch and assigns no traffic class or service life. Treat any chart — including this one — as a practical planning tool based on field experience, not a certified rating.
6–8 Mil Wear Layers: Light Residential Use Only
A 6 to 8 mil wear layer is a genuinely useful product — in the right room. Guest bedrooms, closets, formal sitting rooms and seasonal cabins see limited foot traffic and almost no grit, and a thin wear layer can deliver years of clean service at the lowest cost per square foot.
Where it fails is predictable. A 6 mil plank in a family entryway, kitchen or hallway will show dulling, white scuff marks and visible scratches within a few years. Warranties reflect this: a 6 mil product typically carries a 10-year residential warranty with no commercial coverage at all. If a room is used daily by more than one person, this tier is the wrong specification.
12 Mil Wear Layers: The Standard Residential Choice
Twelve mil is the practical floor for ordinary homes. It handles moderate residential traffic, resists the steady scuffing of furniture movement and shoe traffic, and holds its appearance through the 10 to 15 years most homeowners expect before a remodel. Most 12 mil products carry 15 to 25-year residential warranties.
Where it starts to struggle is in households with large dogs, entryways that collect grit, or kitchens in constant use. If the floor runs continuously from a hallway into a living room and then a kitchen, the wear pattern concentrates in the highest-traffic path — and that path is where a 12 mil layer shows age first. For a low-traffic bedroom, 12 mil is genuinely sufficient. For the connected main living areas, step up.
20 Mil Wear Layers: Heavy Residential and Light Commercial
Twenty mil is the specification we recommend most often, because it is the point where a residential floor also earns a light commercial warranty. It resists dog nails, tracked-in grit, concentrated wear paths and the dropped-cabinet-door incidents of real family life. Expect 15 to 25 years in residential use and 5 to 10 years in light commercial settings.

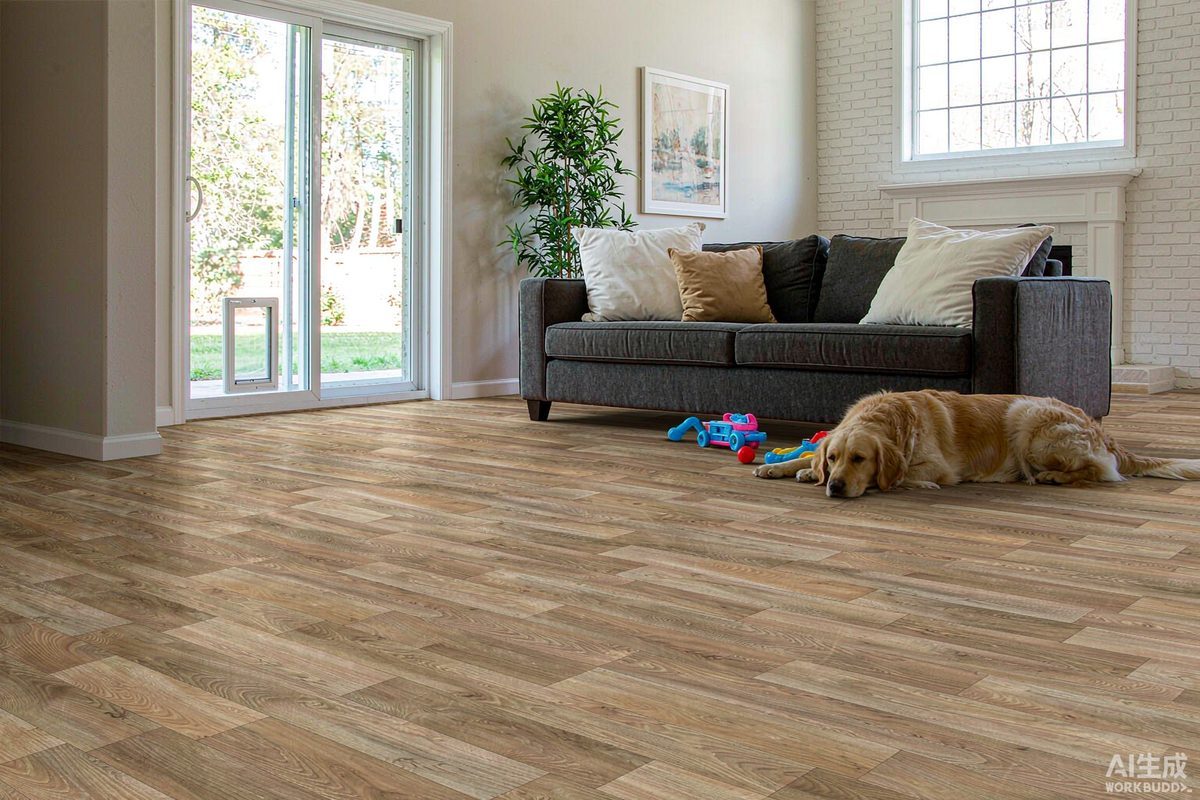

Pet Households
For homes with dogs over 50 lb, never specify below 20 mil. Unclipped nails on a large breed apply heavy scratching force, and a ceramic-enhanced 20 mil finish is the practical minimum. Multiple large dogs justify 28 mil even in a home.
Families With Kids
Homes with children under 10 should not go below 12 mil, and 20 mil is the wiser choice for playrooms, kitchens and living rooms where toys, chairs and spills concentrate.
Rental Properties
Rental turnover punishes surfaces. Specify 22 mil or higher so the floor survives multiple tenancies without replacement, which protects the long-term return on the property.

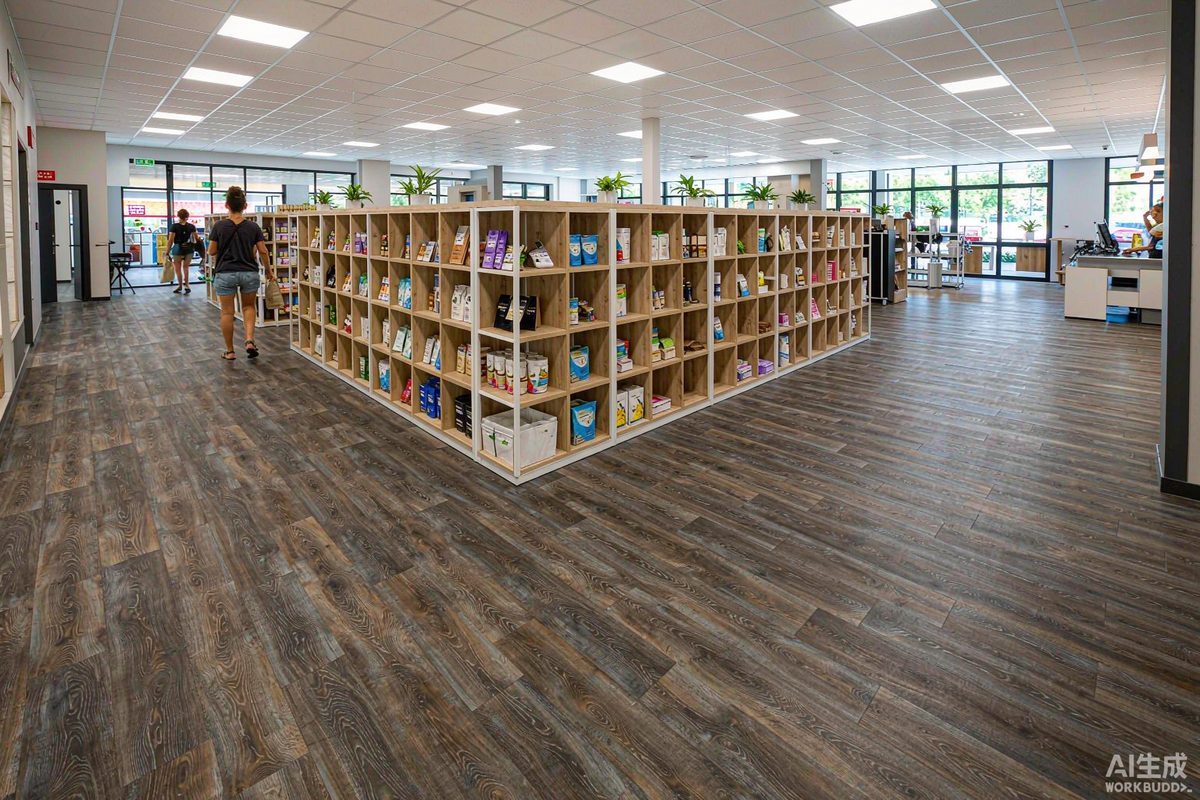

28 Mil and Above: Commercial-Grade Wear Layers
Commercial-grade wear layers start at 28 mil and run to 40 mil and beyond. These are engineered for settings that see thousands of foot passages per day: retail floors, restaurants, offices, clinics and hospitality spaces. They resist rolling carts, cleaning equipment, heavy furniture and constant abrasion, with realistic service lives of 30 years or more.
For most homes, this tier is over-specified — but not always. Homes with multiple large dogs, home offices used daily with rolling chairs, or homeowners who want to install once and never revisit the decision are reasonable candidates. Products at this level are also tested against ASTM F1700 for overall solid vinyl tile performance, which is the reference commercial buyers request.
Wear Layer Coatings: Urethane, Aluminum Oxide and Ceramic Bead
The film thickness is only half the story. What is coated on top of that film determines real-world scratch resistance, and three coating types dominate current product listings.
| Coating | What It Does | Where It Appears |
|---|---|---|
| Standard urethane | Basic protection, scratches from sharp objects relatively easily | Entry-level 6–8 mil products |
| UV-cured urethane with aluminum oxide | Cross-linked hard surface; aluminum oxide is the compound used in sandpaper, so scratches require force exceeding common household objects | Most 20 mil and above |
| Ceramic-infused urethane | Suspends micro-ceramic beads in the top coat for additional scratch and scuff resistance | Premium residential and commercial lines |
The difference is measurable. Comparative Taber abrasion testing (ASTM D4060) shows a ceramic-enhanced 20 mil wear layer losing roughly 25–40 mg of material per 1,000 abrasion cycles, while a standard 20 mil layer can lose 80–120 mg under identical conditions. That gap translates directly into years of usable appearance.
One clarification on marketing language: a ceramic or enhanced coating improves scratch resistance at the very surface, but it does not add mils. It cannot compensate for a thin wear layer, because once the wear layer itself is gone, the coating goes with it. Hanflor uses UV-cured coatings with enhanced surface treatment across its rigid core ranges so that the protective system matches the wear layer thickness specified on the box.
How Wear Layer Thickness Drives Your Warranty
Warranty terms are the most honest signal a manufacturer gives about expected wear layer performance, because they carry financial exposure. The pattern is consistent across the industry:
- 6 mil — approximately 10 years residential, no commercial coverage
- 12 mil — 15 to 25 years residential, generally no commercial coverage
- 20 mil — 25 to 30 years residential plus 5 to 10 years light commercial
- 22 mil — frequently lifetime residential plus 10 to 15 years standard commercial
- 28 mil+ — lifetime residential plus 15 years or more commercial
Read the exclusions before the headline number. Most warranties require installation per the manufacturer's written instructions, including subfloor moisture testing, and non-compliance is the most common reason a surface-wear claim is denied. Warranty length also tells you what the manufacturer believes about how the floor will look a decade from now.
Wear Layer Requirements by Room and Household
Specify by room rather than by house. Abrasion is not evenly distributed: an entry hall, kitchen and pet zone take far more punishment than a bedroom, and matching the wear layer to the actual traffic pattern is the cheapest way to buy durability where it counts.
| Space | Minimum Wear Layer | Sensible Total Thickness |
|---|---|---|
| Bedrooms | 12 mil | 5–6.5 mm, prioritize comfort and quiet |
| Living rooms and hallways | 20 mil | 5–7 mm, highest traffic paths in most homes |
| Kitchens | 20 mil | 5–6.5 mm, withstands dropped items and dragged chairs |
| Bathrooms | 12 mil | 4–6 mm, light traffic but prioritize moisture performance |
| Basements | 12–20 mil | 4–5.5 mm, dimensional stability matters more than thickness |
| Commercial offices and retail | 20–28 mil | 5–8 mm, confirm suitability for castered chairs |
If a single product is being installed throughout a home, choose 20 mil and apply it everywhere. Mixing a thin wear layer into a continuous floor plan creates a visible wear boundary where the traffic crosses between the two, and the cost saving rarely justifies it.
Wear Layer Testing Standards: ASTM D4060, F1700 and EN 649
When comparing products, ask for test data rather than adjectives. Several standards define how wear layer performance is actually measured:
- ASTM D4060 (Taber Abrasion) — measures material weight loss after 1,000 cycles of abrasive wheel contact. This is the most direct measure of scratch and abrasion resistance, and manufacturers should be able to supply results in mg per 1,000 cycles.
- ASTM F1700 — covers overall solid vinyl floor tile performance, including wear layer thickness and surface coating requirements. It is the reference standard for commercial specification.
- EN 649 / ISO 10582 — European standards measuring residual thickness after standardized foot traffic simulation, widely used for commercial vinyl classification.
- ASTM F970 — measures residual indentation after static load, testing combined wear layer and core resistance to furniture legs and point loads.
- ASTM E648 — critical radiant flux, a fire-spread requirement for commercial installations that the PVC wear layer composition influences.
Because a formula in a laboratory means little if the factory process drifts, production consistency matters as much as the specified number. Hanflor manufactures to ISO 9001 quality management and holds FloorScore, GREENGUARD and CE documentation so that specs quoted in a catalog hold up in an audit or a commercial tender.
Signs Your Wear Layer Is Wearing Out
Wear layer failure announces itself before the floor looks ruined. Watch for these signals:
- Fine surface scratches that catch light at low angles across a traffic path
- Areas of dullness that no longer respond to cleaning
- White scuff marks from chair legs or shoe soles that persist after mopping
- A dull patch that feels rougher than the surrounding floor
- In advanced cases, the printed design layer becoming visibly faded or damaged
A quick field test: if a light scratch catches your fingernail, the finish coat is gone and the PVC wear layer itself is being abraded. At that point replacement planning is appropriate. There is no polishing, waxing or recoating fix, because the protective film is bonded into the plank — which is exactly why the specification decision belongs at purchase time, not after installation.
Frequently Asked Questions About Wear Layer Thickness
Is a 12 mil wear layer enough for dogs?
For small dogs and cats, 12 mil can be adequate in low-traffic rooms. For dogs over 50 lb or any household with multiple active dogs, 20 mil is the practical minimum, and a ceramic-enhanced finish makes a meaningful difference to scratch resistance.
Does a thicker wear layer make the floor feel different?
Minimally. Underfoot feel is dominated by total plank thickness and core type. A 6mm SPC plank with a 20 mil wear layer walks essentially the same as the same plank with a 12 mil wear layer. Cushioning and quiet come from the core and any attached underlayment, not the wear layer.
Can a worn vinyl floor be refinished?
No. Unlike hardwood, vinyl cannot be sanded and recoated. Once the wear layer is compromised, the only remedy is replacing the affected planks. This is the strongest argument for specifying the correct thickness from the start.
Is a 20 mil wear layer considered commercial grade?
Twenty mil is generally treated as the entry point for light commercial specification and the benchmark where residential products begin to carry commercial warranties. True commercial-grade products usually start at 28 mil.
Do I need the same wear layer in every room?
No, and matching thickness to traffic is sensible: 12 mil in bedrooms, 20 mil in kitchens, living areas and hallways. If one product is being used throughout a connected floor plan, standardize on 20 mil to avoid a visible wear boundary.
Why does my floor's warranty specify a wear layer number?
Because wear layer thickness is the primary variable behind surface-wear coverage. The warranty is effectively the manufacturer's statement about how long that thickness is expected to retain its appearance under stated traffic conditions.
Final Thoughts: Spec the Wear Layer for the Traffic, Not the Trend
The wear layer is the least visible and most consequential number on a vinyl flooring box. A thicker plank is not automatically a more durable floor, and a beautiful printed design is only as permanent as the clear film protecting it. Match the mil rating to the actual traffic in the room, confirm both the wear layer and total thickness figures in writing, and check the warranty language for the coverage those numbers earn.
Hanflor manufactures rigid core SPC, WPC and dryback LVT with wear layers from 12 mil to 28 mil, including embossed-in-register (EIR) surface textures and UV-cured protective coatings. If you are specifying flooring for a residential project, a rental portfolio or a commercial fit-out, our team can match a wear layer specification to your traffic profile and provide the test documentation your project requires.
